FIRST Brand | DRO Milling Machines

FEATURES :

Table slideways, and top and bottom surfaces are tempered and hardened.
The major cast iron of FC-30 and FCD-45 is high tensile material (MEEHANITE).
T-slots on table are precision ground.
Dovetail slideways on X, Y, Z-axis are hardened and precision ground.
X, Y-axis slideways coated with Turcite-B.
Unique double nuts & backlash adjustment.
Centralized one shot lubrication system.
One piece Ni-Cr Alloy Steel spindle.
Precision P4 bearings, runout within 0.002mm.

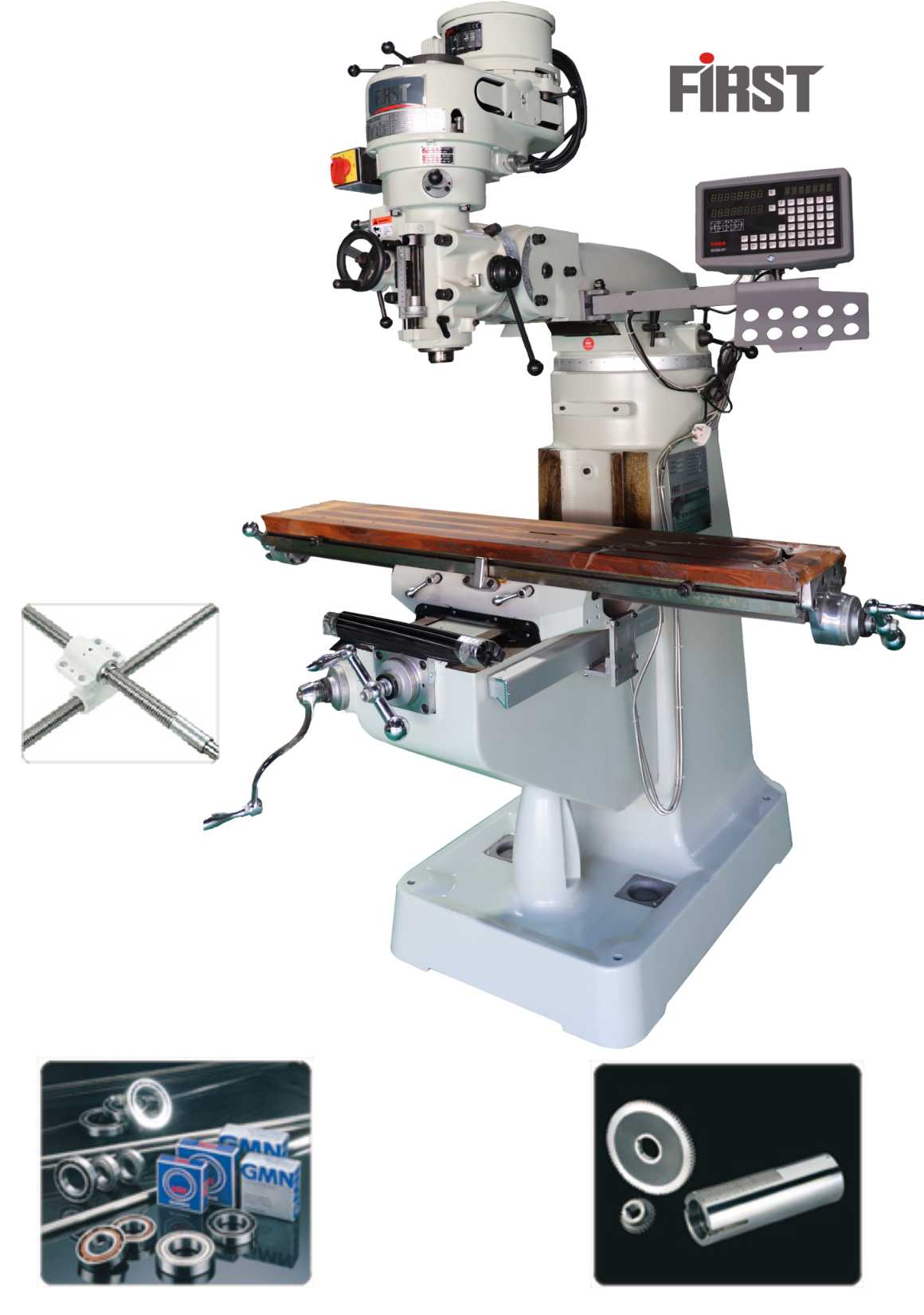

Machine View

Model- LC-1½ TM / LC-185 TM

SPECIFICATIONS :

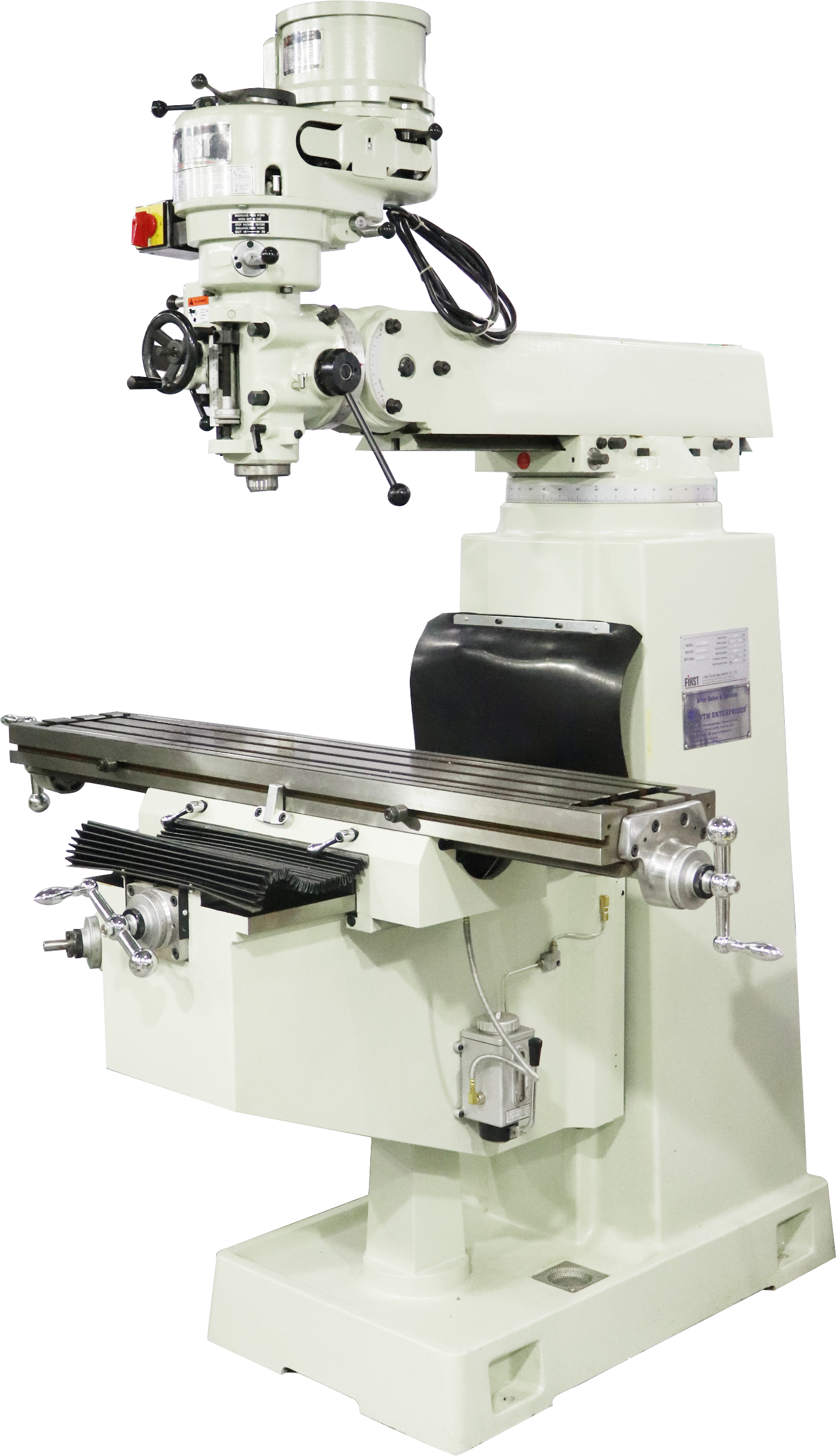

Machine Specification Image

Specification	LC-1½ TM	LC-185 TM
Table (Length × Width)	1270 × 230 mm	1374 × 254 mm
Travelling (X × Y × Z)	900 × 305 × 406 mm	990 × 450 × 500 mm
Taper	R8, NT30, NT40
Arm Travel	305 mm	490 mm
Spindle Motor	2 HP (Double Speed)
Motor Speed Range	60–2280 RPM (8 Steps)
Swivel Angle (Right & Left)	90°
Swivel Angle (Front & Back)	45°
Quill Travel	127 mm, Dia 86 mm
Approximate Net Weight	1200 kg	1400 kg

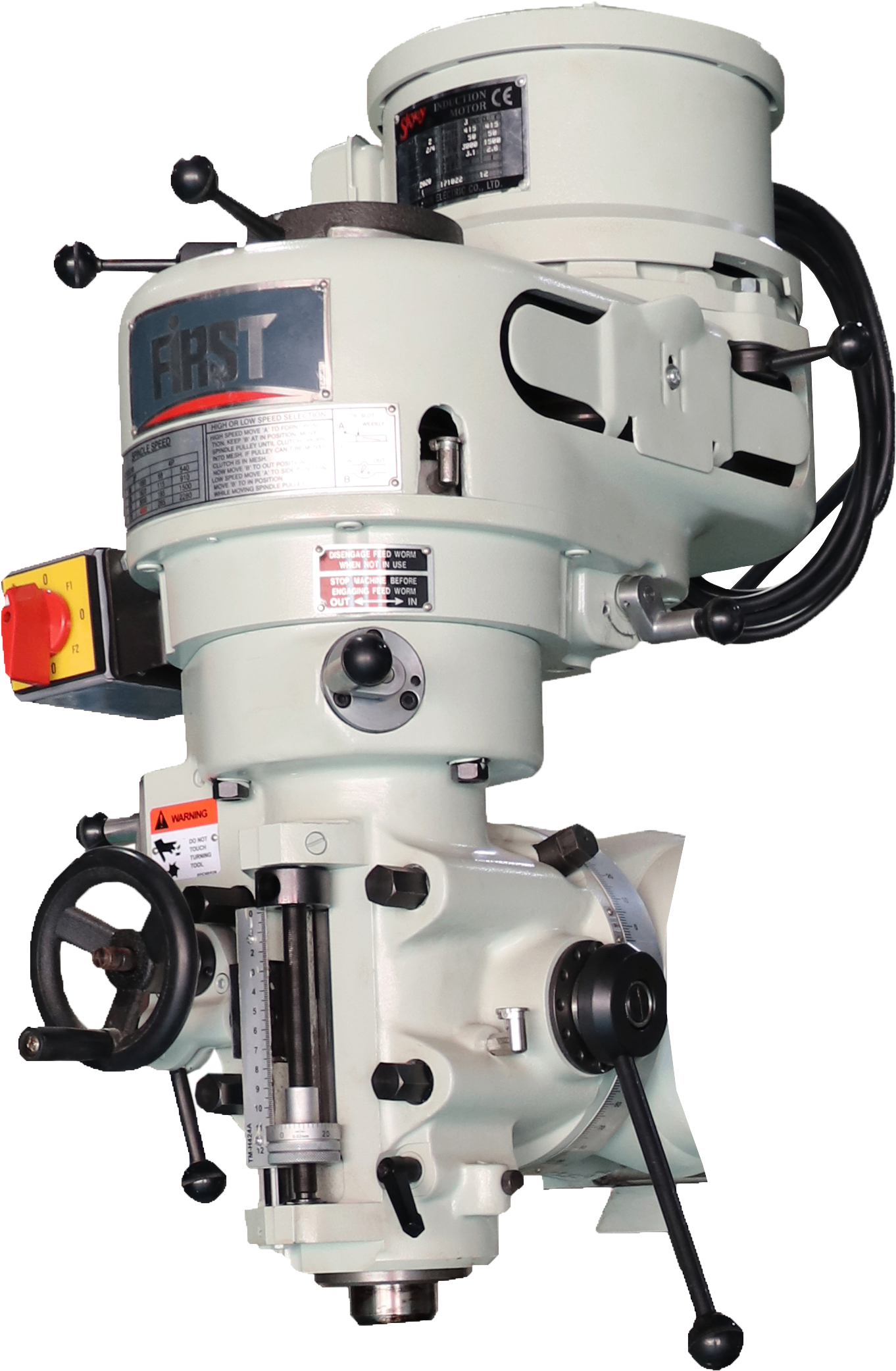

Accessories Image

STANDARD ACCESSORIES

Drill Chuck
Collet Set
Clamping Kit
Machine Vise
Lamp
Drawbar
Tool Box
Chip Guard
Coolant System
One Shot Lubrication System

OPTIONAL ACCESSORIES

Hydraulic Vise
Boring Head
Z Axis DRO Scale
Power Feed X & Y Axis
