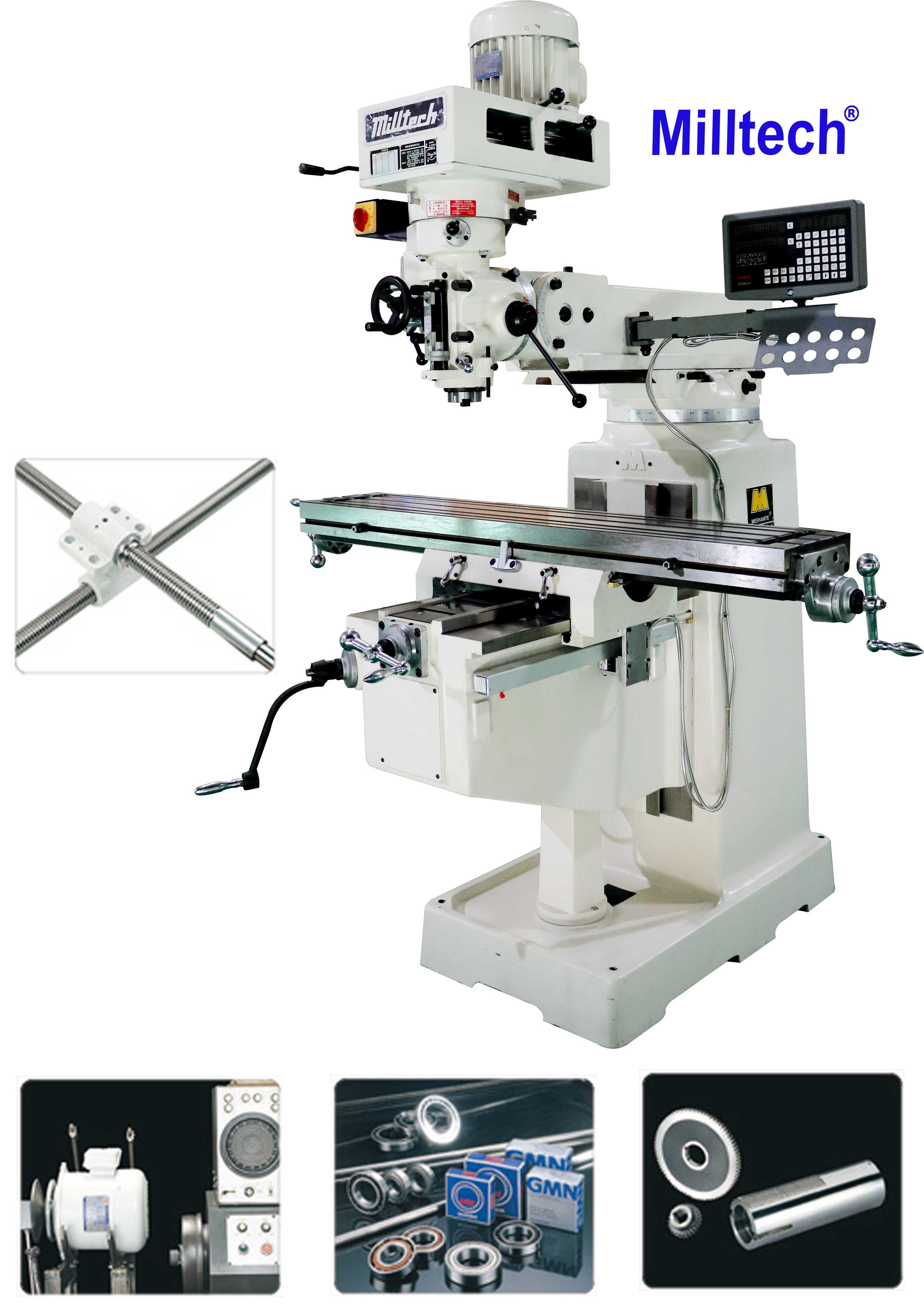

MILLTECH Brand | DRO Milling Machines

FEATURES :

• Table slideways, and top and bottom surfaces are tempered and hardened.
• The major cast iron of FC-30 and FCD-45 is high tensile Meehanite material, annealed for stress relieving, featuring anti-wear properties and deformation-free performance.
• T-slots on the table are precision ground to enhance accuracy on reference planes.
• Dovetail slideways on X, Y, and Z-axis (for HYM4VA series) are hardened and precision ground, assuring maximum rigidity and maintaining high accuracy during heavy cutting.
• X and Y-axis slideways are coated with Turcite-B for smooth traverse and superior wear resistance.
• Unique double-nut and backlash-adjusting design with enlarged contact face ensures long-term accuracy and easy backlash adjustment.
• Centralized one-shot lubrication system is provided for ways, nuts, and lead screws.
• The spindle is manufactured from a single piece of Ni-Cr alloy steel.
• Supported by two precision angular contact P4 (7210) bearings and one ball bearing to ensure rigidity; inner taper runout is maintained within 0.002 mm.
