VTM Brand | Lathe Machine

FEATURES :

  • Suitable for tool room applications with high productivity.
  • All gears in the headstock are hardened and precision ground.
  • Feed rod and lead screw are interlocked.
  • Foot-operated spindle brake for quick and effective stopping of the spindle during operation.
  • Cam-lock spindle nose suitable for handling 3-jaw and 4-jaw chucks.
  • Turcite "B" coating provided between the bed and carriage.
  • DRO (Digital Read Out System) is optional.
Machine View
Model- VTM 410 / VTM460

SPECIFICATIONS :

Model VTM 410 VTM 460
Swing Over Bed 410 mm 460 mm
Swing Over Cross Slide 220 mm 270 mm
Distance Between Centers 1000 mm 1500 mm
Width of Bed 300 mm 300 mm
Spindle Bore 58 mm 58 mm
Spindle Speed 20–2000 rpm 25–2000 rpm
Tail Stock Travel 120 mm 120 mm
Main Motor 5.5 kW 5.5 kW

STANDARD ACCESSORIES

  • 3 Jaw Chuck
  • 4 Jaw Chuck
  • Chuck Guard
  • Coolant System
  • Face Plate
  • Follow Rest
  • Machine Lamp
  • Operation Manual
  • Sleeve (2 Nos)
  • Steady Rest

VTM Brand |Surface Grinding Machine

FEATURES :

  • All casting pieces are made in Taiwan with annealing treatment to enhance high rigidity and stability in grinding.
  • V-slot slideways are precision hand scraped and coated with Turcite "B" for smooth movement and improved stability.
  • Standard auto-lube system provides consistent lubrication to all slideways.
  • The spindle is directly coupled with the motor, ensuring minimal spindle run-out and high-precision grinding performance.

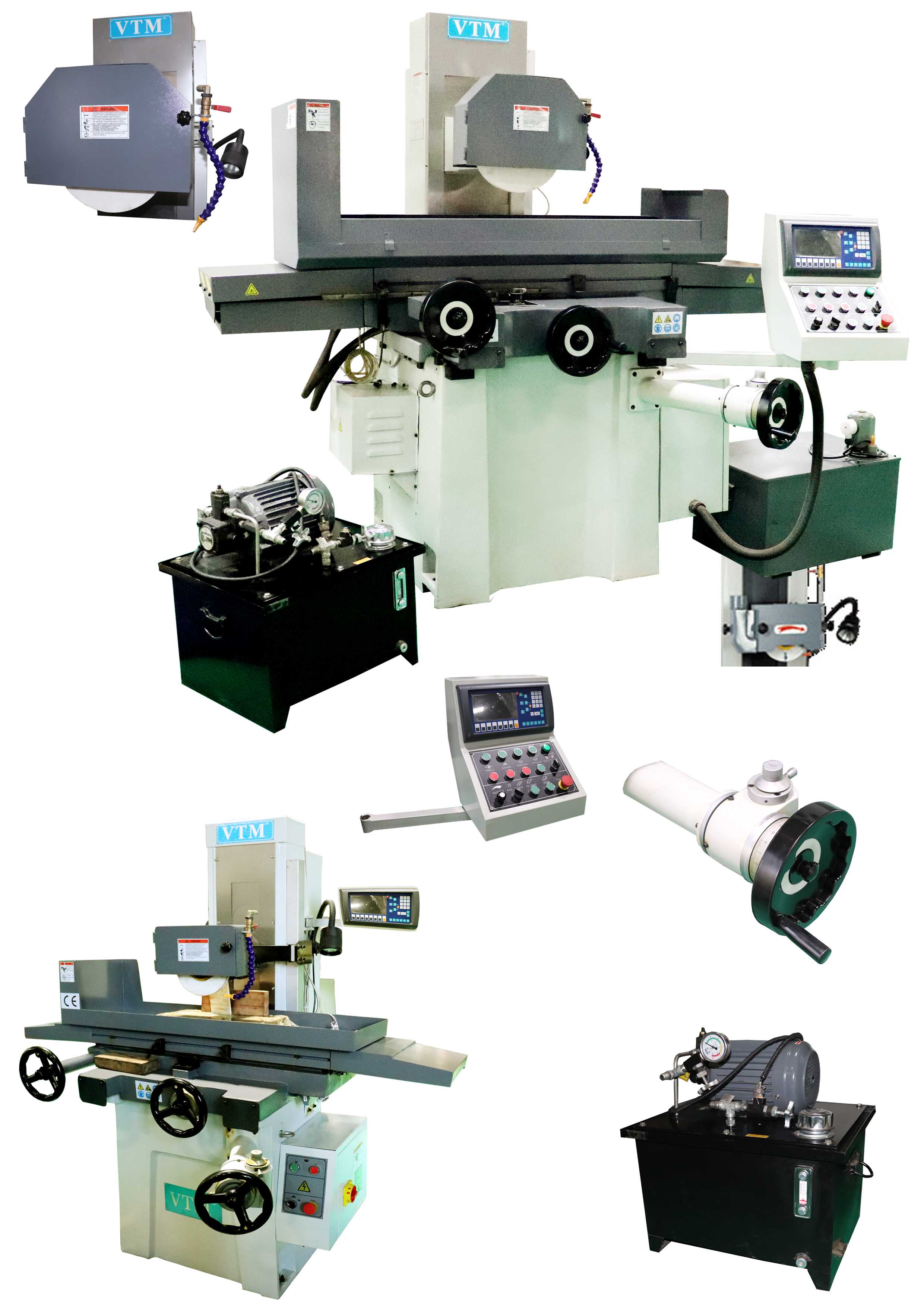

Machine Image
Model- VTM 603 / VTM 618

SPECIFICATIONS :

Specification VTM 603 VTM 618
Table (Length × Width) 600 × 300 mm 457 × 150 mm
Max. Grinding Length 700 mm 480 mm
Max. Grinding Width 340 mm 160 mm
Distance from Table to Spindle Center 500 mm 490 mm
Wheel Size 180 × 13 × 31.75 mm
Spindle Speed (50/60 Hz) 3000 to 3600 RPM

STANDARD ACCESSORIES

  • Grinding Wheel with Flange
  • Leveling Screw & Plate
  • Operation Manual
  • Toolbox & Tools
  • Wheel Balancing Arbor
  • Wheel Balancing Base
  • Wheel Dresser with Diamond
  • Working Lamp

OPTIONAL ACCESSORIES

  • Electro Magnetic Chuck
  • Parallel Dressing Attachments
  • Demagnetizer
  • Grinding Wheel Flange
  • Paper Filter with Coolant System
  • Coolant System with Splash Guard
  • Coolant System & Dust Unit with Splash Guard
  • Dust Suction System
  • Magnetic Separator Filter
