Major cast parts are made of stress-relieved and annealed Meehanite castings to ensure stability, rigidity, high accuracy, and extended working life.
The spindle is directly coupled with a V-3 motor, ensuring high spindle runout accuracy of 2 μ.
Precision cartridge spindle is grease-lubricated, requires minimal maintenance, and incorporates four preloaded Class 7 (P4) super-precision angular contact ball bearings for heavy grinding.
Double V slideways are precisely hand-scraped and coated with Turcite "B" for smooth movement and enhanced stability.
Standard auto-lubrication system provides effective lubrication for all slideways, lead screws, and nuts.
Lubricating oil is filtered and recycled to ensure smooth movement with minimal wear and tear.

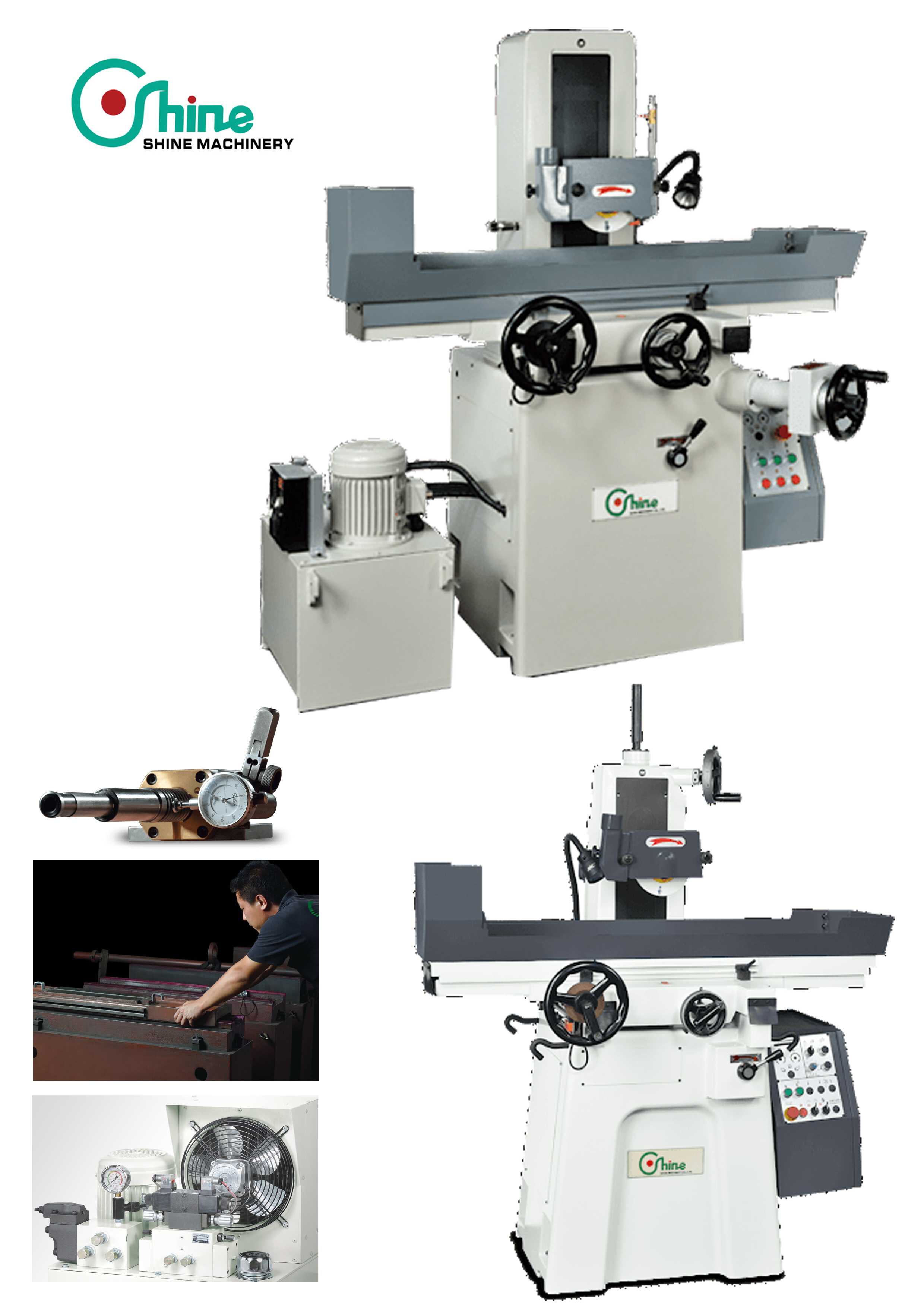

Model- APSG618M / APSG1020 / APSG1224

SPECIFICATIONS :

Model	APSG618M	APSG1020	APSG1224
Table (Length × Width)	150 × 457 mm	250 × 500 mm	300 × 600 mm
Max. Grinding Length	475 mm	580 mm	700 mm
Max. Grinding Width	160 mm	300 mm	340 mm
Distance from Table to Spindle Center	490 mm	500 mm	500 mm
Wheel Size	180 × 13 × 31.75 mm		355 × 38 × 127 mm
Spindle Speed (50 / 60 Hz)	3000 – 3600 rpm		1750 – 2000 rpm
