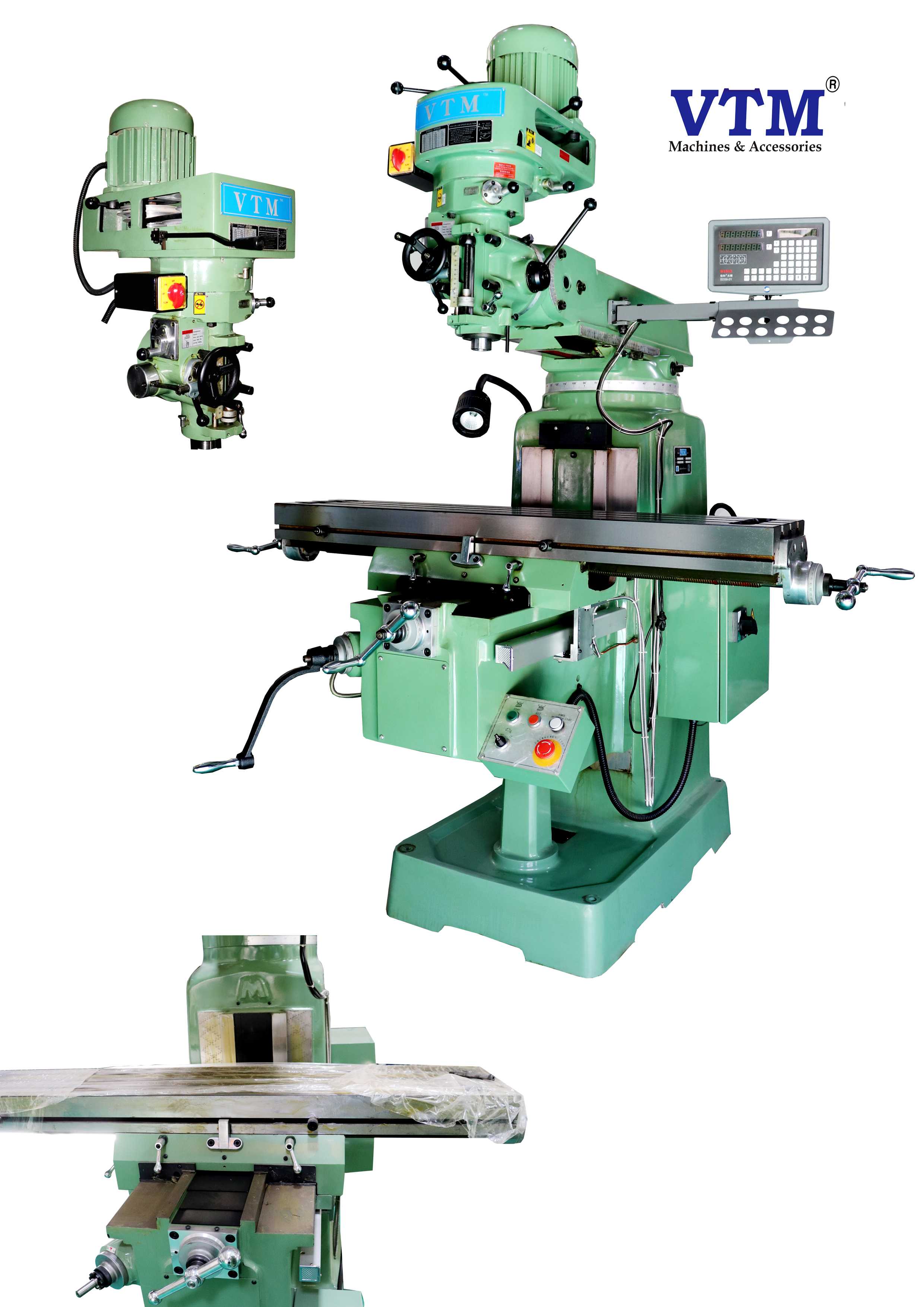

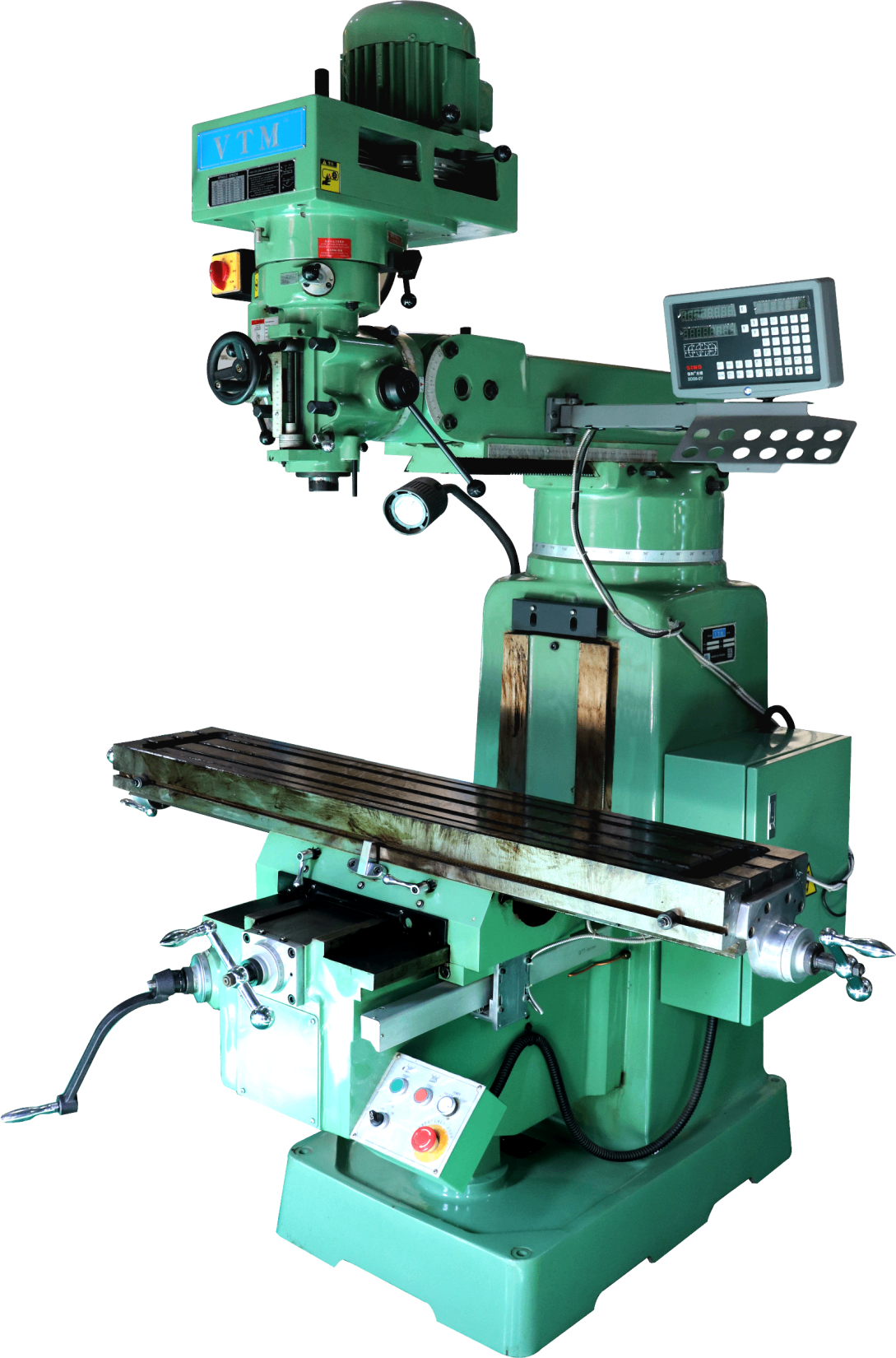

VTM Brand | DRO Milling Machines

Meehanite Casting (FC-30 Grade) with Annealing and Stress Relieving Treatment.
Square Slideways on Y, Z-Axis (for VK-5SH Series). Way surfaces are hardened and precision ground, assuring maximum rigidity and high accuracy in heavy cutting.
Turcite "B" coated on X and Y ways.
Spindle made from SCM-415 with tempering treatment and precision ground.
Precision angular contact bearing P4 (7210) for high accuracy and heavy-duty cutting.
Centralized one lubrication system for ways, nut, and lead screws.
One-piece back gear housing with bearing finish-bored into the housing after installation, ensuring best alignment for quieter and more efficient operation in VK-SH.
Inner taper hardened and precision ground; inner taper runout maintained within 0.002mm.

Model- VK-4 / VK-5 / VK-5SH

SPECIFICATIONS :

Model	VK-4	VK-5
Table (Length × Width)	1270 × 254 mm	1370 × 254 mm
Travelling (X × Y × Z)	900 × 420 × 400 mm	1000 × 435 × 500 mm
Arm Travel	500 mm
Taper	R8, NT-30, NT-40
Spindle Motor	2.2 kW / 3 HP
Motor Speed Range	70–4621 / 0–4200 RPM
Swivel Angle (Right & Left)	90°
Swivel Angle (Front & Back)	45°
Quill Travel	127 mm, Dia 86 mm
Approximate Net Weight	1350 kgs
